Location:Home > Products > Blister Packing Machine > DPH-260H High Speed Autom…

Blister Packing Machine

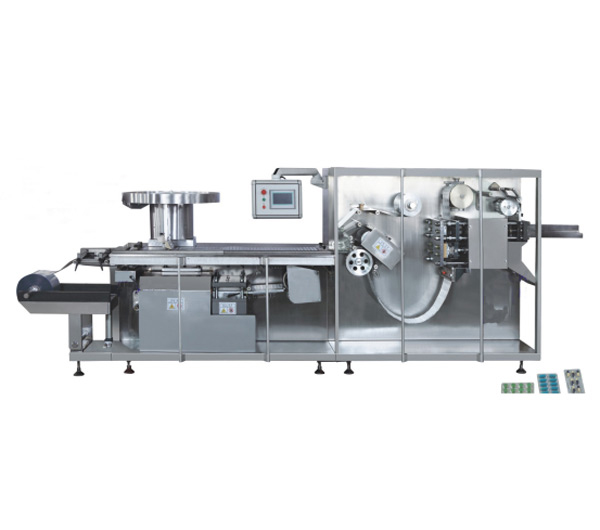

DPH-260H High Speed Automatic Blister Packing Machine (Roller-Plate type)

  DPH-260H High Speed Automatic Blister Packing Machine (Roller-Plate type)

Product Description

Roller-Plate type blister packing machine is a kind of blister aluminum (PTP) / plastic (PVC) compound sealing packaging equipment, It can pack the material like the drugs ( tablets, capsules ) food, medical equipment,health products, electronic components and so on, as using positive pressure forming, rolling sealing, it has a blister crisp, smooth forum features .

DPH-260H high-speed blister packaging machine is a new generation of products through painstakingly researched and developed. Punch frequency can achieve to 200 times, it is 4 times higher than normal blister packaging machine. It combines the advantages of flatbed and drum blister packaging machine , and with a special dedicated tablet feeder, so it has some features like high punching frequency, energy consumption province, accurate, stable, easy to replace mold, high yield and so on. In particular, can adapt to a variety of drugs and profiled sections, the first mate of the improved production efficiency . Machine designs more reasonable , frequency control and mechanical, electrical, optical and pneumatic automatic control technology and in strict accordance with the pharmaceutical industry "GMP" standards for innovative design, the whole split combinations station modular structure, etc. The machine brings together the many advantages of high-speed roller and plate industry , after our company improvement, innovation , achieving the overall performance to be leading level in domestic, the relevant technology to fill the gap in domestic, and compared with pimported equipment, it is relatively more practical and economical.

Technical Parameters

Item??Parameter
Cutting Speed(Standard Sheet Size: 80mm×57mm×3)100-200 times/min
Capacity18000-36000 sheets /hour
Stroke Range20-100 mm
Max. Forming Area260×250mm
Max. Forming Depth12mm
Heating Power for Upper and Lower Forming Heating Plate2KW×4
Heating Power for Heat-sealing3KW
Servo Motor Power0.75KW X 2
Main Motor Power1.5KW
Power Supply and Total Power380V 50HZ(220V 60HZ)15.5KW
Air Pump Volume Flow≥0.5m3/min
Packing MaterialMedicinal PVC0.25×260mm
PTP Alu-foil0.02×260mm
Machine Dimension(L×W×H)4650×1070×1750mm
Machine Packing Size(L×W×H)5050×1170×2150mm
Machine Weight??3000Kg

Packing Material Specification

Roll Type Packing MaterialForming Sheet PVC/PVDC/PET/PE/ACLAKLid Foil:PTP Alu-foil
Thickness0.2-0.5mm(Normal:0.25-0.3mm)0.02-0.025mm
Roller Core Diameter70-76mm70-76mm
Roll Material Diameter800mm350mm
